Micronlab

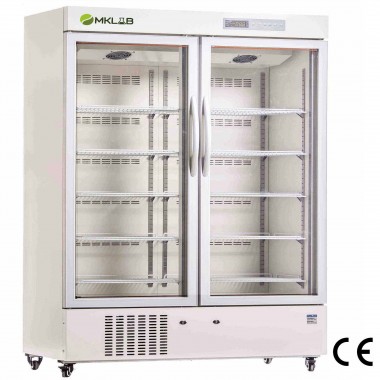

Pharmaceutical Refrigerator

Feature:

• Accurate temperature controller, ensure the inside temperature within 2~8°C and accuracy 0.1 °C.
• Specially designed forced-air cooling system, ensure frost-free cabinet and good temperature uniformity.
• Suggested ambient temperature 10~32°C with humidity below 95%.
• Three layer toughened glass door with heater to avoid condensation.
• Color spray steel plate inner chamber for friendly using and easy cleaning.
• Wide available voltage range: 187V~242V

Safety

• Safety door lock and controller setting password to prevent unauthorized access.
• Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power.
• Auto on/off cooling fan to prevent cold air from leaking out when the door is opening.
• Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar
• Power failure protection: turn on delay of the cooling system after power failure.
• Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.

Humanized design

• 4 casters with stopper for easy moving and fixation.
• 10 adjustable shelves for easy storing.
• Special designed service-free drainage system, ensure no water in the cabinet.

• Auto on/off LED light with manual switch on control panel.

•

• Specification:

• Model		MKR-5V656	MKR5V1500
  External Size (W*D*H)		1220*642*1885	1800*775*1965
  Capacity（L/cu.ft)		656/23	1500/53
  Temp. Range		2~8℃
  Temp. Accuracy		0.1℃
  Temp. Display		LED display with microprocessor
  Safety System	Visual &  Audible Alarm	High or low temperature, Sensor failure, Door ajar, Power failure
  	Access Protection	Safety door lock and password protection.
  	Cool Air Anti-leak Protection	Auto on/off cooling fan with door on/off.
  	Power Failure Protection	Turn on delay of the cooling system after power failure.
  	Controller Error Protection	Cooling system can work with memory when controller or or sensor failure
  	Backup Battery	8h
  Refrigeration System	Refrigerant	R134a
  	Refrigeration Type	Forced air refrigeration
  	Compressor Qty	1
  	Evaporator	Finned evaporator, Aluminium tube
  	Condenser	Wire-and-tube
  	Sensor	NTC
  	Defrost	Auto defrost
  Material	Insulation	PURF
  	Internal	Color sprayed steel	Stainless steel panel
  	External	Color sprayed steel	Stainless steel panel
  	Door	Transparent glass door with lock, Sealing joint strip with magnetic force, Heating film preventing frosting(except MKR5V1500).
  Power	Consumption	443W	1110W
  	Voltage/Frequency	AC220V±10%, 50/60Hz
  Accessories	Shelf/Basket/Drawer	Steel wire shelves*10	Steel wire shelves*12
  	Outside door lock	2	3
  	Castor & Foot	Caster with stopper
  	Inside lamp	LED
  	Optional	Test hole, Data logger, Chart recorder, Remote alarm port.
  Package	Package Size (W*D*H)	1290*695*1940	1940*880*2035
  	Gross Weight	188kg	190kg
