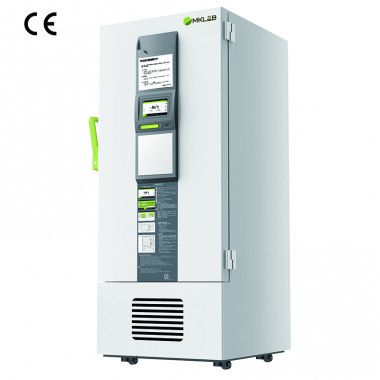

Vertical -86℃ Freezer

Feature:

Two-compressor cascade refrigeration system specially designed for cryogenic applications.

Wide available voltage range: 187V~242V.
Wide temperature range :10℃~32℃can reach -86℃.
Accurate Temperature control technology to make the temperature maintain -60℃~-86℃and accuracy 0.1 °C.
USB port to read temperature and alarm conditions in recent 1 months.
VIPⅡPLUS technology, special narrow design for entering elevators.(only for 588 838）
Removable heat exchanger，almost all of the relevant components of the cooling components could be maintenance and replacement.

Safety

Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery,condenser failure,high ambient temperature alarm,abnormal voltage alarm.
Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
Keyboard lock, password protection to avoid set parameter randomly.
Special noise reduction design.

Model		MKF-86V838
Capacity（L/cu.ft)		838/29.6
Interior size(WDH)(mm)		894×718×1310
Exterior size(WDH)(mm)		1160×1172×1994.5
Temp. range（℃）		-60~-86℃
Temp. controller		Microprocessor
Ambient temp.（℃）		10~32℃
Display		LCD display
Specification	Shelf/drawer QTY	Stainless steel shelf/3
	Consumption	13.86 kWh/24h
	Noise（db)	55
Refrigeration System	Refrigerant	HC
	Refrigeration method	Direct refrigeration
	Compressor brand /QTY	SECOP/2
	Evaporator &material	Submerged coil evaporator/ Copper tube evaporator
	Condenser	Copper tube and finned
	Sensor	PTC
	Defrost	Manual
Power	Voltage/Frequency	AC220V±10%，50/60Hz
	Power（W)	1540W
	Current（A)	7
